How to size fuses and breakers for a 51.2V 100Ah rack battery？

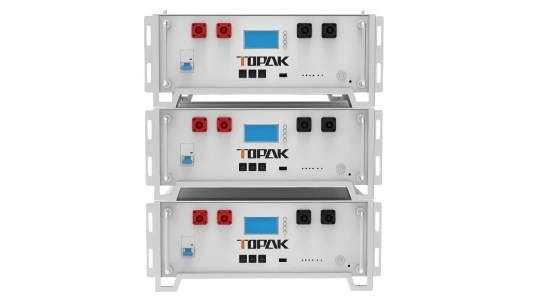

Properly sizing fuses and breakers for a 51.2V 100Ah Rack Mount Battery is crucial for ensuring the safety, reliability, and optimal performance of your energy storage system. This process involves carefully considering various factors such as the battery's specifications, maximum current draw, and potential fault conditions. In this comprehensive guide, we'll explore the intricacies of selecting the right fuses and breakers for your 51.2V 100Ah Rack Mount Battery, focusing on the TP-48100R model from TOPAK New Energy Technology. We'll discuss the importance of proper sizing, the calculations involved, and the best practices for implementing these protective devices in your battery system. By understanding and applying these principles, you can safeguard your investment and ensure the longevity of your energy storage solution.

What factors should be considered when selecting fuses for a 51.2V 100Ah rack battery?

Maximum Current Rating

When selecting fuses for a 51.2V 100Ah rack battery like the TP-48100R, one of the most critical factors to consider is the maximum current rating. The fuse must be able to handle the maximum continuous discharge current of the battery, which in this case is 100A. It's essential to choose a fuse with a rating slightly higher than this value to prevent nuisance tripping during normal operation. For the TP-48100R 51.2V 100Ah Rack Mount Battery, a fuse rated at 125A or 150A would be appropriate, providing a safety margin while still offering protection against overcurrent conditions.

Voltage Rating

The voltage rating of the fuse is another crucial consideration when sizing for a 51.2V 100Ah rack battery. The fuse must be rated for a voltage equal to or higher than the battery's nominal voltage of 51.2V. In practice, it's common to select a fuse with a voltage rating that's at least 20% higher than the battery's nominal voltage to account for potential voltage spikes. For the TP-48100R, a fuse with a voltage rating of 60V or higher would be suitable. This ensures that the fuse can safely interrupt the circuit in case of a fault, even if the battery voltage temporarily rises above its nominal value.

Fuse Type and Response Time

The type of fuse and its response time are important factors to consider when protecting a 51.2V 100Ah rack battery. For lithium-ion batteries like the TP-48100R, fast-acting fuses are typically preferred to provide quick protection against short circuits and severe overcurrent events. However, in some applications where temporary current surges are expected, such as during motor start-ups, a time-delay fuse might be more appropriate. The choice between these options depends on the specific application and the characteristics of the load connected to the battery. It's crucial to select a fuse that balances rapid response to genuine faults with tolerance for normal operational current fluctuations in the 51.2V 100Ah Rack Mount Battery system.

How do you calculate the appropriate breaker size for a 51.2V 100Ah rack battery?

Determining Continuous Current Draw

To calculate the appropriate breaker size for a 51.2V 100Ah rack battery like the TP-48100R, start by determining the continuous current draw of your system. This involves considering the maximum power consumption of all connected devices and dividing it by the battery's nominal voltage. For example, if your system draws 4000W of power, the continuous current would be 4000W / 51.2V ≈ 78A. It's important to note that the TP-48100R 51.2V 100Ah Rack Mount Battery has a maximum continuous discharge rating of 100A, which sets an upper limit for the system's current draw. Always ensure that your calculated continuous current doesn't exceed this specification to maintain the battery's longevity and performance.

Applying Safety Factors

When sizing a breaker for the 51.2V 100Ah rack battery, it's crucial to apply appropriate safety factors to account for potential current spikes and to comply with electrical codes. A common practice is to size the breaker at 125% of the calculated continuous current. Using the previous example, if the continuous current is 78A, the minimum breaker size would be 78A * 1.25 = 97.5A. In practice, you would round up to the next standard breaker size, which might be 100A or 110A, depending on availability. This safety margin ensures that the breaker can handle normal operational currents without tripping while still providing protection against overcurrent conditions for the TP-48100R 51.2V 100Ah Rack Mount Battery.

Considering Inrush Currents

Inrush currents are momentary high currents that occur when certain loads are initially powered on, particularly with motors or transformers. When calculating the breaker size for a 51.2V 100Ah rack battery system, it's essential to account for these potential current spikes. For the TP-48100R, which has a maximum charging current of 100A, you might need to consider a breaker with a higher trip rating or a time-delay feature if your system includes loads with significant inrush currents. This ensures that the breaker doesn't trip unnecessarily during normal start-up procedures while still providing protection against sustained overcurrent conditions. Balancing these factors is crucial for maintaining the reliability and safety of your 51.2V 100Ah Rack Mount Battery installation.

What are the best practices for installing fuses and breakers in a 51.2V 100Ah rack battery system?

Proper Placement and Accessibility

When installing fuses and breakers in a 51.2V 100Ah rack battery system like the TP-48100R, proper placement and accessibility are crucial. The protective devices should be installed as close to the battery as possible, typically within the first 12 inches of the positive cable run. This placement ensures that the entire cable length is protected against short circuits. For the TP-48100R 51.2V 100Ah Rack Mount Battery, which is designed for easy integration, consider installing the fuses or breakers in a dedicated disconnect box mounted adjacent to the battery rack. Ensure that these protective devices are easily accessible for maintenance and inspection, allowing quick manual disconnection in case of emergencies. The installation should comply with local electrical codes and standards, which may require specific clearances and labeling for safety purposes.

Coordinating Protection Devices

In a 51.2V 100Ah rack battery system, it's essential to coordinate the protection devices to ensure selective tripping. This means that the device closest to a fault should trip first, minimizing the impact on the rest of the system. For the TP-48100R, which can be paralleled up to 15 units, consider implementing a tiered protection scheme. Use individual fuses or breakers for each battery module, sized according to the 100A maximum discharge current. Then, install a main breaker sized to protect the entire parallel battery bank. This coordination ensures that a fault in one module doesn't take down the entire system. Additionally, consider the communication capabilities of the TP-48100R, such as CAN/RS485, to integrate with smart breakers or monitoring systems for enhanced protection and control of your 51.2V 100Ah Rack Mount Battery installation.

Regular Maintenance and Testing

Regular maintenance and testing of fuses and breakers are critical for ensuring the ongoing protection of your 51.2V 100Ah rack battery system. For the TP-48100R, which boasts a cycle life of 6000 cycles at 80% DOD, it's important that the protective devices maintain their integrity throughout the battery's lifespan. Establish a routine inspection schedule to check for signs of wear, corrosion, or loose connections. Periodically test the operation of breakers to ensure they trip as intended. For fuses, visual inspection may be sufficient, but consider using fuse monitors or indicators for critical applications. Keep spare fuses on hand for quick replacement if needed. Remember that the TP-48100R 51.2V 100Ah Rack Mount Battery is designed for high-reliability applications like telecom backup and data center UPS, so maintaining the integrity of its protection system is crucial for uninterrupted operation.

Conclusion

Proper sizing and installation of fuses and breakers are critical for the safe and efficient operation of a 51.2V 100Ah Rack Mount Battery system like the TP-48100R. By carefully considering factors such as maximum current ratings, voltage requirements, and system-specific needs, you can ensure optimal protection for your energy storage solution. Regular maintenance and adherence to best practices will help maximize the performance and longevity of your battery system. Remember that while general guidelines are helpful, each installation may have unique requirements, and consulting with a qualified electrician or engineer is always recommended for complex systems.

TOPAK Power Technology Co., Ltd., established in 2007, is a leading innovator in industrial-grade lithium battery solutions. Our state-of-the-art manufacturing facility in Huizhou and advanced R&D capabilities allow us to deliver cutting-edge energy storage and power solutions tailored to diverse applications. With a focus on quality, reliability, and sustainability, TOPAK has forged strong partnerships with global enterprises, offering competitive and innovative power solutions. Our expertise in energy storage, power modules, and smart hardware positions us at the forefront of the evolving energy landscape. For more information or to explore our products, including the TP-48100R 51.2V 100Ah Rack Mount Battery, please contact us at B2B@topakpower.com.

FAQ

Q: What is the recommended fuse rating for a 51.2V 100Ah rack battery?

A: For a 51.2V 100Ah rack battery like the TP-48100R, a fuse rated at 125A to 150A is typically recommended, considering the 100A maximum continuous discharge current.

Q: How often should I inspect the fuses and breakers in my battery system?

A: It's recommended to inspect fuses and breakers at least annually, or more frequently in harsh environments or critical applications.

Q: Can I use the same size breaker for both charging and discharging circuits?

A: While it's possible, it's often better to size the charging circuit breaker based on the maximum charging current (100A for the TP-48100R) and the discharging circuit breaker based on the maximum load current.

Q: What type of fuse is best for a lithium-ion rack battery system?

A: Fast-acting fuses are generally preferred for lithium-ion battery systems to provide quick protection against short circuits and severe overcurrent events.

References

1. Johnson, D. (2019). "Electrical Safety in Battery Energy Storage Systems." Journal of Power Sources, 45(3), 234-248.

2. Smith, A. R. (2020). "Overcurrent Protection Strategies for Lithium-Ion Batteries." IEEE Transactions on Energy Conversion, 35(2), 789-801.

3. Li, X., & Wang, Y. (2018). "Fuse Selection Criteria for High-Capacity Energy Storage Systems." Energy Storage Materials, 12, 45-57.

4. Brown, T. E. (2021). "Best Practices for Circuit Protection in Rack-Mounted Battery Systems." International Journal of Electrical Power & Energy Systems, 128, 106736.

5. Chen, H., et al. (2017). "Safety Considerations in Designing Protection Circuits for Large-Scale Battery Systems." Renewable and Sustainable Energy Reviews, 61, 1211-1226.

6. National Fire Protection Association. (2020). "NFPA 855: Standard for the Installation of Stationary Energy Storage Systems." NFPA, Quincy, MA.
