Testing and listing standards accepted for vertical battery systems

In the rapidly evolving landscape of energy storage solutions, vertical battery systems such as the Vertical Energy Storage Battery have emerged as a promising technology for efficient and space-saving power storage. As these systems gain traction in various applications, from residential to industrial settings, it becomes crucial to establish and adhere to rigorous testing and listing standards. These standards ensure the safety, reliability, and performance of vertical battery systems, providing confidence to both manufacturers and end-users. This article delves into the comprehensive testing and listing standards accepted for vertical battery systems, exploring the key aspects of safety protocols, performance benchmarks, and regulatory compliance. By understanding these standards, stakeholders can make informed decisions and contribute to the widespread adoption of this innovative energy storage solution.

What are the key safety standards for vertical energy storage batteries?

Electrical Safety Standards

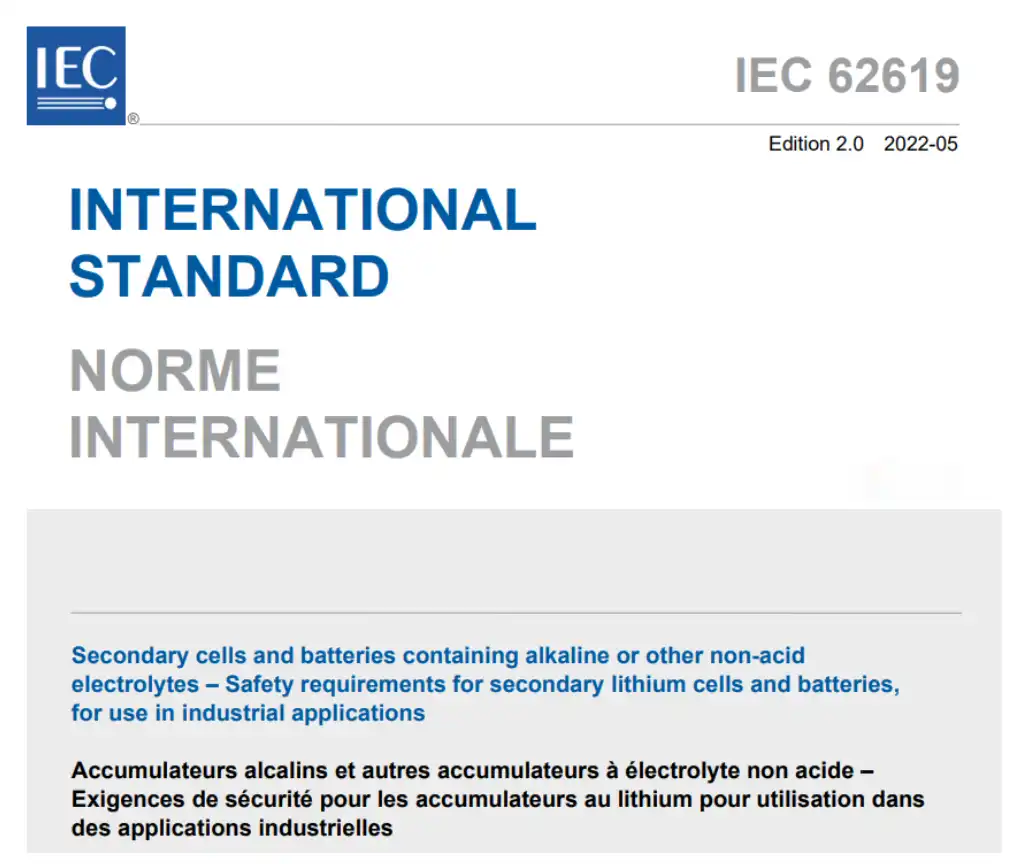

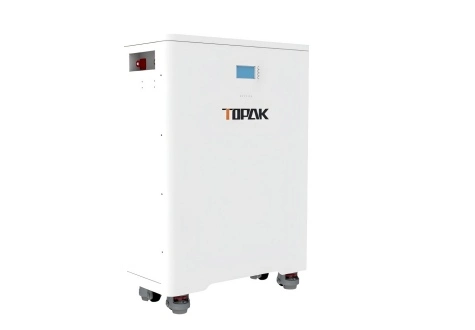

Vertical Energy Storage Batteries must adhere to strict electrical safety standards to ensure reliable and hazard-free operation. Short circuit protection, dielectric strength, and insulation resistance testing are common components of these specifications.  In order to ensure that the TP-48200V 51.2V 200Ah Vertical Energy Storage Battery satisfies the safety criteria for secondary lithium cells and batteries used in industrial settings, it is subjected to extensive testing in accordance with IEC62619 standards.  With this seal of approval, you know the battery can handle regular and extreme electrical loads without breaking down.

Thermal Management Standards

Effective thermal management is crucial for the longevity and safety of Vertical Energy Storage Batteries. The capacity of the battery to release heat and keep its operating temperature steady is the primary emphasis of the standards in this domain.  Batteries with a vertical design, such as the TP-48200V type, have an advantage when it comes to heat dissipation since the airflow is more efficient. Thermal runaway tests are conducted to ensure that the battery can prevent cascading failures in case of overheating. The compact dimensions of 550 × 420 × 420 mm for the TP-48200V facilitate easier integration of cooling systems, further enhancing thermal management capabilities.

Transportation Safety Standards

Given the high energy density of Vertical Energy Storage Batteries, transportation safety is a critical concern. The UN38.3 certification, which the TP-48200V model has obtained, is a mandatory requirement for the transport of lithium batteries. Altitude simulation, heat cycling, vibration, shock, and external short circuit are some of the circumstances that this standard mimics to ensure that batteries can withstand shipment.  For vertical energy storage systems to be distributed and deployed globally, it is crucial that they comply with these criteria to guarantee the safety of the battery during transportation.

How do performance standards for vertical energy storage batteries compare to traditional systems?

Energy Density and Capacity Standards

Vertical Energy Storage Batteries are designed to maximize energy density and capacity within a compact footprint. The TP-48200V model, for example, boasts a nominal energy of 10.24 kWh in a vertical form factor, demonstrating the high energy density achievable with this design. Performance standards for these batteries often include tests for capacity retention over multiple charge-discharge cycles. With a cycle life of ≥6000 cycles at 80% depth of discharge (DOD), the TP-48200V sets a high benchmark for longevity, surpassing many traditional battery systems. For energy storage facilities to be more efficient and have a lower total cost of ownership, this longer lifespan is essential.

Charge and Discharge Rate Standards

The ability to handle high charge and discharge rates is a key performance metric for Vertical Energy Storage Batteries. Here, standards test how well a battery holds its charge and remains efficient under different loads. One example of the high power capacities of contemporary vertical battery systems, such as the Vertical Energy Storage Battery, is the TP-48200V type, which has a suggested discharge current of 100A. Grid stability, peak shaving, and other high-power applications can be challenging for traditional systems, therefore performance requirements also evaluate the battery's ability to sustain steady output across its operating lifespan.

Scalability and Integration Standards

One of the significant advantages of Vertical Energy Storage Batteries is their scalability and ease of integration. This area's performance requirements center on how well the battery works in parallel arrangements and how well it integrates with current power systems.  Scalability of vertical battery systems is demonstrated by the TP-48200V variant, which may operate in parallel with up to 10 units.  With the TP-48200V's CAN and RS485 interfaces, in addition to available Bluetooth and 4G modules, standards also assess the communication capabilities of these batteries, guaranteeing strong integration with contemporary smart grids and energy management systems.

What environmental and durability standards are applied to vertical energy storage batteries?

Environmental Impact and Sustainability Standards

Elevated Power Storage  The energy sector's rising emphasis on sustainability is reflected in the increasingly strict environmental criteria that batteries are required to meet.  From the extraction of raw materials to recycling at the conclusion of the battery's lifespan, these criteria measure the environmental effect.  The TP-48200V and other vertical batteries help minimize material consumption and transportation emissions thanks to its compact shape and light weight of about 150 kg. In addition to evaluating the battery's ability to reduce carbon emissions and combat climate change, environmental standards evaluate how well the battery integrates renewable energy sources and how efficient it is overall.

Durability and Operational Lifespan Standards

Durability standards for Vertical Energy Storage Batteries focus on their ability to maintain performance over extended periods and under various environmental conditions. The TP-48200V model's cycle life of ≥6000 cycles at 80% DOD is a testament to the durability of modern vertical battery systems such as the Vertical Energy Storage Battery. Environmental elements including temperature changes, humidity, and vibration are tested for in this area's standards. Longer operating lifespans, less need for replacements, and minimized long-term expenses for energy storage projects are all benefits of vertical batteries, which are made possible by their sturdy design and intelligent Battery Management System (BMS).

Safety and Hazard Mitigation Standards

Safety is paramount in the design and operation of Vertical Energy Storage Batteries. Various safety features and tactics for reducing hazards are included in this area of standards.  Multiple safeguards against overcharging, overdischarging, and short circuits are included into the TP-48200V model, which is certified to IEC62619 standards.  Additionally, fire resistance and containment procedures for the very improbable case of a thermal runaway are addressed in safety regulations.  The vertical design of these batteries offers advantages in fire suppression and isolation while also lowering the risk of cascading failures in large-scale installations.  To get regulatory clearance and guarantee the broad use of vertical energy storage technologies, compliance with these strict safety requirements is crucial.

Conclusion

The testing and listing standards for vertical battery systems such as the Vertical Energy Storage Battery play a crucial role in ensuring the safety, reliability, and performance of these innovative energy storage solutions. From electrical safety and thermal management to environmental impact and durability, these standards cover a comprehensive range of factors critical to the successful deployment of vertical batteries. As the energy storage landscape continues to evolve, adherence to these standards will be essential for manufacturers, installers, and end-users alike, driving the adoption of efficient, safe, and sustainable power storage solutions for a wide array of applications.

TOPAK Power Technology Co., Ltd., founded in 2007, is a leading innovator in industrial-grade lithium battery solutions. Our state-of-the-art manufacturing facilities and continuous R&D efforts have positioned us at the forefront of energy storage technology. We specialize in customized solutions for diverse applications, offering high-performance products like the TP-48200V Vertical Energy Storage Battery. Our commitment to quality, reliability, and customer satisfaction has earned us partnerships with renowned enterprises worldwide. As we expand globally, we continue to deliver competitive and sustainable power solutions, driving mutual success in the evolving energy landscape. For more information or inquiries, please contact us at B2B@topakpower.com.

FAQ

Q: What are the main advantages of vertical energy storage batteries?

A: Vertical energy storage batteries offer space efficiency, high energy density, scalability, and improved thermal management, making them ideal for various applications in urban and space-constrained environments.

Q: How long do vertical energy storage batteries typically last?

A: High-quality vertical energy storage batteries, like the TP-48200V model, can last for 6000 cycles or more at 80% depth of discharge, providing years of reliable service.

Q: Are vertical energy storage batteries safe for residential use?

A: Yes, vertical energy storage batteries that comply with standards like IEC62619 and incorporate advanced safety features are safe for residential use when properly installed and maintained.

Q: Can vertical energy storage batteries be used with renewable energy systems?

A: Absolutely. Vertical energy storage batteries are excellent for integrating with renewable energy systems, providing efficient storage and grid stabilization capabilities.

Q: What certifications should I look for when choosing a vertical energy storage battery?

A: Look for certifications such as IEC62619 for safety, UN38.3 for transportation safety, and MSDS (Material Safety Data Sheet) for handling and environmental information.

References

1. International Electrotechnical Commission. (2017). IEC 62619:2017 Secondary cells and batteries containing alkaline or other non-acid electrolytes - Safety requirements for secondary lithium cells and batteries, for use in industrial applications.

2. United Nations. (2019). UN Manual of Tests and Criteria, Part III, Section 38.3 - Lithium Metal and Lithium Ion Batteries.

3. Underwriters Laboratories. (2020). UL 1973: Standard for Batteries for Use in Stationary, Vehicle Auxiliary Power and Light Electric Rail (LER) Applications.

4. National Fire Protection Association. (2020). NFPA 855: Standard for the Installation of Stationary Energy Storage Systems.

5. Institute of Electrical and Electronics Engineers. (2018). IEEE 1547-2018 - Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems Interfaces.

6. International Organization for Standardization. (2018). ISO 18243:2018 - Electrically propelled mopeds and motorcycles - Test specifications and safety requirements for lithium-ion battery systems.
